PRODUCT SPECIFICATIONS
A bike of quality, craftsmanship and style.
By taking our do-it-all Revolver frame and pairing it with some of the best high-end components, we've created an incredibly sophisticated and balanced bike for the type of rider who appreciates the finer things in life. The long 21" top tube and perfect all-around geometry make the Revolver perfectly comfortable on any terrain, from the bowl of a bowl, to local trails, to the back streets of a big city.
The beefy 28-9 gearing gives this rig the punch it needs to go fast, and the full complement of chrome ECLAT Dura pegs and hubcaps let you rip down any rail in sight. With a lifetime-guaranteed ECLAT Storm fork and a stunning Skipper Green paint finish, the need for a custom build no longer exists when you can ride a bike like this.
INCLUDES LIFETIME WARRANTY ON FRAME AND FORK

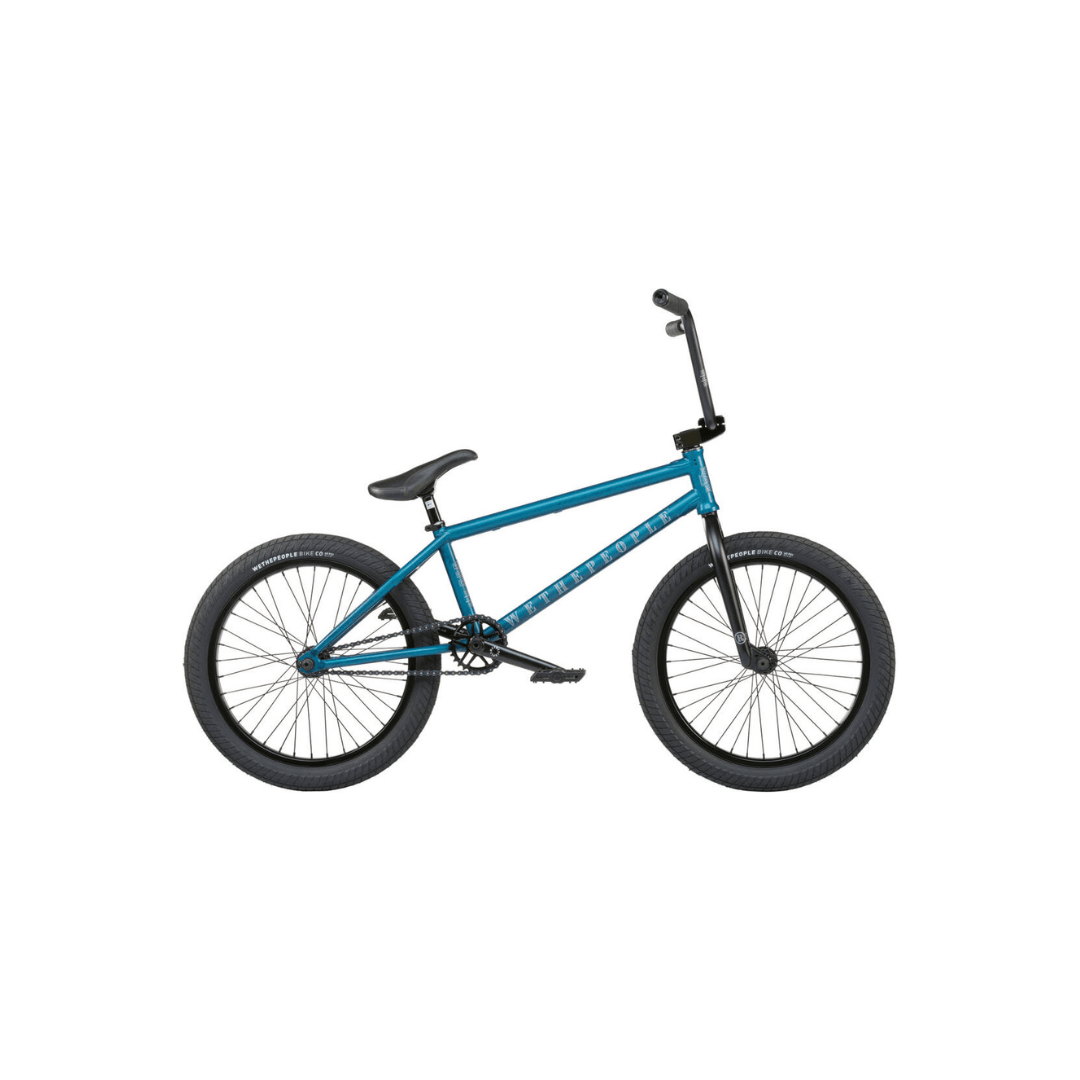

The WeThePeople Revolver 20" 2023 is a high-end freestyle BMX, designed for the most demanding riders who want to tackle street and park with a solid, responsive bike that's ready for anything. The 21" Matt Skipper Green frame offers stability and control, while the quality WTP components ensure durability and high performance. Ideal for those looking for a professional setup ready for the most technical tricks.
BMX discipline : | Freestyle BMX |
Wheel diameter : | 20" |
Horizontal tube : | 21" (53.3cm) |
Handlebar design : | Two-piece |
Handlebar height : | 9.25" (23.5cm) |
Handlebar width : | 29.7" (75.4cm) |
Backsweep : | 11th |
Upsweep : | 2.5° |
Hub : | Cassettes., Welded bearings |
Bike Type : | Park |
Level : | Advanced |
Frame standover height : | 9.1'' (23.1cm) |
Weight : | 12.06kg |
Seat clamps : | Not integrated |
Seatpost Length : | 200mm |
Saddle : | Pivotal |
Tire width : | 2.35" |
Peg : | 2 pegs included |
Wheel axle diameter : | 10mm, 14mm |
Wheel offset : | 30mm |
Stem Type/Length : | 51mm, Top load. |
Stem Diameter : | 22.2mm |
Headset steering series : | Integrated 1 1/8" |
Headstock angle : | 74.85° |
BMX Brakes included : | U-brake (Rear), Caliper Brake (Front) |
Compatible with Gyro : | Yes |
Gyro system included : | No |
Rear Wheel Length : | 13.4'' (34cm) |
Rear Trailer Length (Minimum) : | 13.25'' (33.7cm) |
Transmission ratio : | 25/9 |
Crank Length/Type : | 175mm, Three-Piece |
Pedal axle diameter : | 9/16" |
Crown Assembly : | 48-spline, Guide screw |
Chain side : | Right, Switchable |
Crank material : | Chromoly Steel |
Crank Axle Diameter : | 22mm |
Bottom bracket : | Mid, Welded |
Pedal material : | Fiberglass, Plastic |
Number of spokes : | 36 |
BMX Rim Type : | Double-walled rear rim, Double-walled front rim |
Chain Type : | Single speed |
Assembled : | Partially assembled |
Recommended from : | 15 years |
